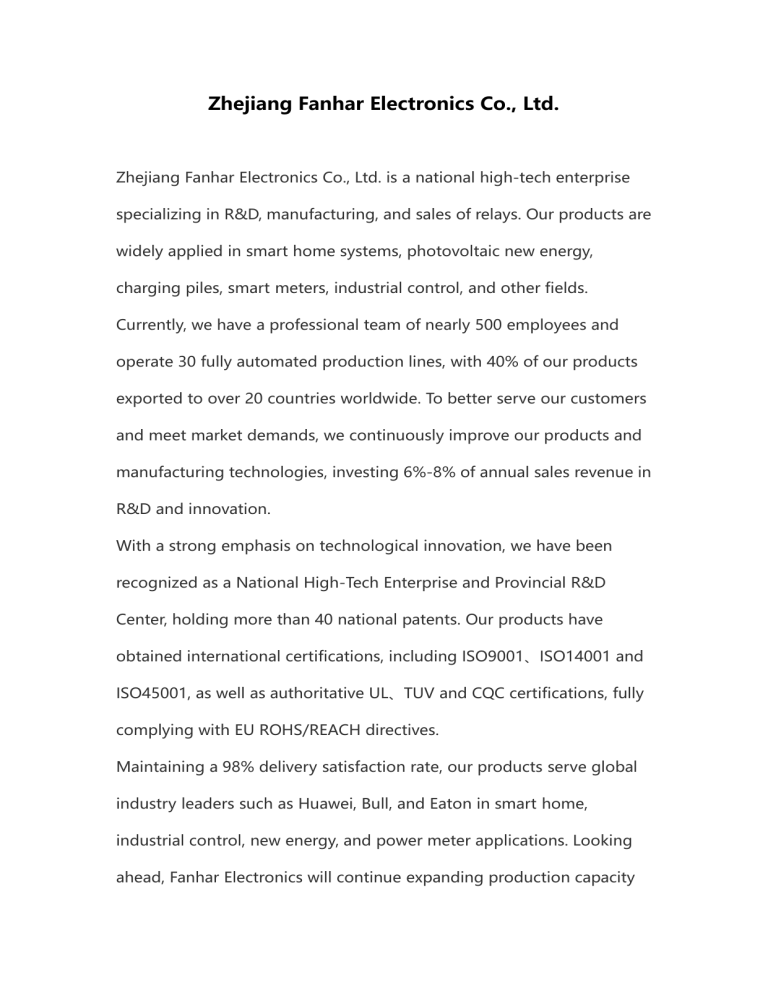

Zhejiang Fanhar Electronics Co., Ltd

Zhejiang Fanhar Electronics Co., Ltd.
Zhejiang Fanhar Electronics Co., Ltd. is a national high-tech enterprise
specializing in R&D, manufacturing, and sales of relays. Our products are
widely applied in smart home systems, photovoltaic new energy,
charging piles, smart meters, industrial control, and other fields.
Currently, we have a professional team of nearly 500 employees and
operate 30 fully automated production lines, with 40% of our products
exported to over 20 countries worldwide. To better serve our customers
and meet market demands, we continuously improve our products and
manufacturing technologies, investing 6%-8% of annual sales revenue in
R&D and innovation.
With a strong emphasis on technological innovation, we have been
recognized as a National High-Tech Enterprise and Provincial R&D
Center, holding more than 40 national patents. Our products have
obtained international certifications, including ISO9001、ISO14001 and
ISO45001, as well as authoritative UL、TUV and CQC certifications, fully
complying with EU ROHS/REACH directives.
Maintaining a 98% delivery satisfaction rate, our products serve global
industry leaders such as Huawei, Bull, and Eaton in smart home,
industrial control, new energy, and power meter applications. Looking
ahead, Fanhar Electronics will continue expanding production capacity
and deepening our presence in the new energy market, striving to
become a provider in the relay industry.
W11 5A 10A Power Relay UL TUV CQC Compliant - high-current relay
manufacturer
Features：
10A switching capability
Contact arrangement:1A､1C
Provide high-sensitivity type of products, coil power consumption is 200
mW
Breakdown voltage (between coil and contacts): 5 kV
Creepage distance and air distance are greater than 10 mm
We can provide the product with an ambient temperature is 105℃
UL insulation system: Class F
Environmentally friendly product(RoHS compliant)
Outline Dimensions:(18.6×10.3×13.0)mm
Main application: Industrial control, Smart home, 5G communication
power
W11 Power Relay 10A Switching Capability is a high-performance
electromagnetic relay designed for applications that require high current
switching capability. With a switching current capability of 10A, the relay
is suitable for a variety of industrial, automation, and home appliance
scenarios. Its DC control signal is 12V, which ensures efficient control at
low power consumption. The W11 Power Relay 10A adopts a compact
design to save PCB space while providing reliable electrical isolation to
ensure safe isolation between the control circuit and the load circuit. Its
coil power is only 450 mW (200 mW for the sensitive version), which
reduces energy consumption while maintaining high efficiency. In
addition, the relay supports two installation methods, through-hole (THT)
and surface mount (SMT), to meet different design requirements. The
W11 Power Relay 10A has extremely high reliability and can operate
stably in harsh environments. Its insulation strength reaches 1000Vrms,
meets the FCC Part 68 standard, and complies with international Safety
certification requirements such as UL and VDE. The product has also
passed the RoHS environmental certification and complies with the
requirements of European Directives 2002/50/EC (ELV) and 2002/95/EC
(ROHS), reflecting the importance of environmental protection. With its
excellent performance, flexible design options, and reliable quality, W11
Power Relay 10A has become an ideal choice for industrial automation,
home appliances, and automotive electronics. Whether it is high current
switching or complex circuit control, W11 Power Relay 10A can provide a
stable and reliable solution.
